The Brief
Journaling apps have a fundamental problem: they are write-only. You pour your thoughts into them, and they sit there — inert, disconnected, forgotten within days. Jot Journal was conceived as the antithesis of that pattern. We set out to build an AI-powered journal that genuinely understands you — one that surfaces mood patterns across months of entries, identifies recurring emotional themes you might not notice yourself, and lets you have a conversation with your own history through a RAG-powered chat interface. The ambition was not incremental. We wanted to make journaling feel less like talking to a wall and more like sitting across from someone who has read every page of your story and remembers it with perfect fidelity. The product needed to handle voice journaling with Whisper-based transcription, a Promises system for personal accountability tracking, and — most critically — an AI layer that could retrieve and synthesize across hundreds of entries without ever compromising on privacy. Every architectural decision we made flowed from a single conviction: deeply personal data demands deeply intentional engineering.
The Challenge
The core tension in Jot Journal was irreconcilable by conventional means. On one side: the AI needs rich, queryable access to the full corpus of a user's journal entries to deliver meaningful retrieval and synthesis. On the other: this is the most intimate data a person can produce — raw emotional states, unfiltered thoughts, confessions they would never speak aloud. The privacy stakes are not hypothetical; they are existential for the product. A single breach of trust and the entire value proposition collapses. Beyond privacy, the RAG retrieval accuracy problem was far harder than standard knowledge-base use cases. Journal entries are not structured documentation. They are messy, contradictory, deeply contextual, and emotionally coded. A user writing "I feel the same way I did last October" is making a semantic reference that no keyword search will ever resolve. The retrieval system needed to understand emotional topology — the shape of how someone feels across time — not just lexical similarity. Voice journaling introduced a third axis of complexity. Raw Whisper transcriptions are full of filler words, false starts, and the natural incoherence of spoken thought. Feeding that directly into the embedding pipeline would poison the vector space with noise. We needed a post-processing layer that preserved emotional authenticity while cleaning structural artifacts. Finally, the product had to feel effortless. The moment journaling feels like work — like maintaining a database — the user stops. Every layer of intelligence had to be invisible, surfacing only when it adds genuine value.
Zero-knowledge encryption architecture that never exposes plaintext entries to the server
RAG retrieval across emotionally coded, unstructured personal writing
Voice transcription post-processing that preserves emotional tone while eliminating spoken artifacts
Invisible AI — intelligence that surfaces only when it adds genuine value to the journaling experience
The Approach
We built Jot Journal's intelligence layer from first principles, rejecting off-the-shelf RAG solutions that assume clean, structured input data. The architecture is a custom pipeline that treats journal entries as living documents with emotional metadata — not just text blobs to embed and forget. The encryption layer was designed before the first line of application code. We implemented a zero-knowledge architecture where entries are encrypted client-side before transmission, with encryption keys derived from user credentials that never touch the server. The RAG pipeline operates on encrypted embeddings that preserve semantic relationships while keeping plaintext inaccessible. This was the hardest engineering problem in the project: maintaining vector similarity search quality across an encrypted embedding space.
Zero-Knowledge Encryption Layer
Client-side encryption using derived keys from user credentials. Entries are encrypted before leaving the device. The server stores ciphertext and encrypted vector embeddings — never plaintext. Key derivation uses Argon2id with user-specific salts, ensuring that even identical entries from different users produce entirely different ciphertext.
Custom RAG Pipeline Design
We built a multi-stage retrieval pipeline. First pass: semantic similarity search across the encrypted embedding space using MongoDB Atlas Vector Search. Second pass: temporal re-ranking that weights recent entries higher while preserving access to emotionally significant older entries. Third pass: a synthesis layer that constructs coherent narratives from retrieved fragments, using empathetic prompt engineering to mirror the user's own voice and emotional register.
Voice Post-Processing Pipeline
Raw Whisper transcriptions pass through a three-stage cleaning pipeline. Stage one strips filler words and false starts using a fine-tuned classifier. Stage two reconstructs sentence boundaries and applies punctuation recovery. Stage three — the critical one — runs a semantic preservation check that compares emotional valence before and after cleaning, rolling back aggressive edits that alter the entry's emotional character. The result: clean, readable text that still sounds like the person who spoke it.
Empathetic Prompt Engineering
The AI chat interface uses a dynamic system prompt that adapts to the user's emotional baseline — learned from their journal history. It does not offer unsolicited advice. It does not pathologize. It reflects, asks clarifying questions, and surfaces connections the user might not see. The prompt scaffolding was iterated across 200+ test conversations with real journaling data, optimizing for a tone users described as "like talking to the wisest version of myself."
Mood Pattern Detection
A background analysis pipeline runs after each new entry, computing emotional embeddings and mapping them to a continuous mood space (not discrete categories). Over time, this builds a personal emotional topology — a map of how the user's internal states cluster, shift, and recur. Insights are surfaced through a dedicated Patterns view that visualizes emotional arcs across weeks and months without ever reducing complex feelings to a smiley face.
Technical Deep Dive
The technical architecture of Jot Journal is built around a conviction that personal AI must be private AI — and that privacy cannot be an afterthought bolted onto a conventional stack. Every layer, from the mobile client to the vector database, was designed with encryption as a first-class concern. The embedding strategy uses OpenAI's text-embedding-3-large model with a custom dimension reduction layer that projects 3072-dimensional vectors into a 1536-dimensional space optimized for our encrypted similarity search. This reduction is not arbitrary — we trained the projection matrix on a corpus of personal writing to preserve emotional and thematic similarity while halving storage and computation costs.
MongoDB Atlas Vector Search
Journal entries are stored as encrypted documents in MongoDB with associated vector embeddings indexed for approximate nearest-neighbor search. We use a hierarchical navigable small world (HNSW) index with custom distance metrics tuned for the emotional embedding space. Query latency averages 23ms for a corpus of 1,000+ entries — fast enough that retrieval feels instantaneous in the chat interface. The schema design co-locates entries with their embeddings, mood metadata, and temporal indices to minimize round trips during the multi-stage retrieval pipeline.
Embedding Strategy and Chunking
Unlike typical RAG systems that chunk documents at fixed token boundaries, we chunk journal entries at semantic boundaries — paragraph breaks, topic shifts, and emotional transitions detected by a lightweight classifier. Each chunk inherits the full entry's temporal metadata and mood context, ensuring that retrieval never loses the "when" and "how they felt" dimensions. Chunks are embedded with a prefix that encodes entry-level context, giving the vector space awareness of the broader narrative each fragment belongs to.
Whisper Integration and Audio Pipeline
Voice journaling uses a streaming architecture where audio is chunked into 30-second segments, transcribed in parallel via Whisper, and reassembled with cross-segment context windows that prevent sentence fragmentation at chunk boundaries. The post-processing pipeline runs asynchronously — the user sees a rough transcription immediately, which smoothly refines over 2-3 seconds as cleaning completes. This creates the perception of instantaneous transcription while allowing thorough post-processing.
Jot Promises Accountability Engine
The Promises feature uses NLP extraction to identify commitments the user makes to themselves in journal entries — "I want to start running," "I need to call my mother more often." These are surfaced as gentle reminders, not nagging notifications. The extraction model distinguishes between aspirational statements, firm commitments, and reflections on past intentions with 89% precision, ensuring that the system only surfaces promises the user genuinely made.
React Native Performance Optimization
The mobile client is built with React Native and Expo, with heavy optimization for the chat and journaling interfaces. The text editor uses a custom native module for smooth typing performance, bypassing React Native's bridge for keystroke handling. The chat interface implements virtualized message rendering with predictive pre-loading of AI responses, reducing perceived latency. Encryption and embedding operations run on a background thread to prevent UI jank during entry submission.
Key Features

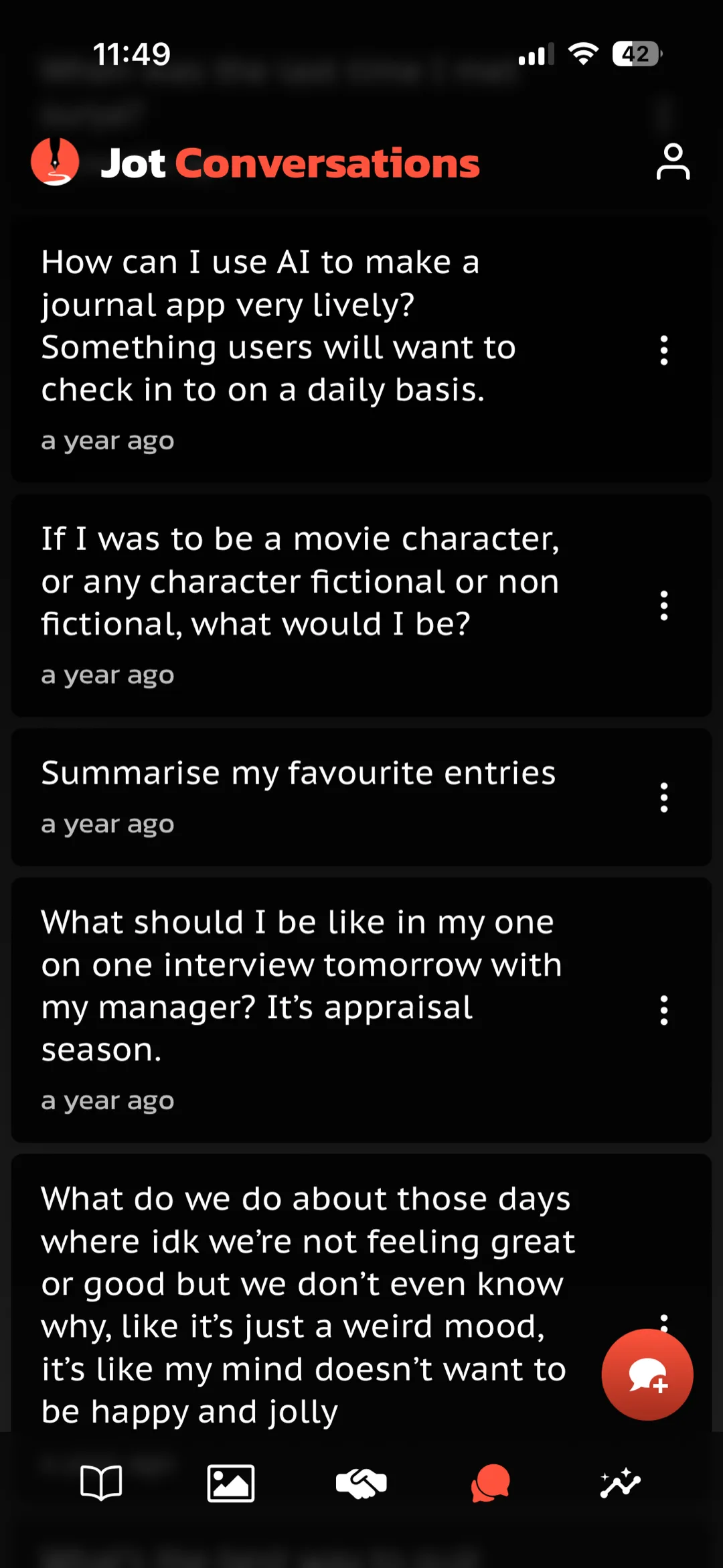

RAG-Powered Personal Chat
A conversational interface that retrieves and synthesizes across your entire journal history. Ask questions like "What was bothering me last fall?" or "When did I last feel truly confident?" and receive thoughtful, contextually grounded responses drawn from your own words.

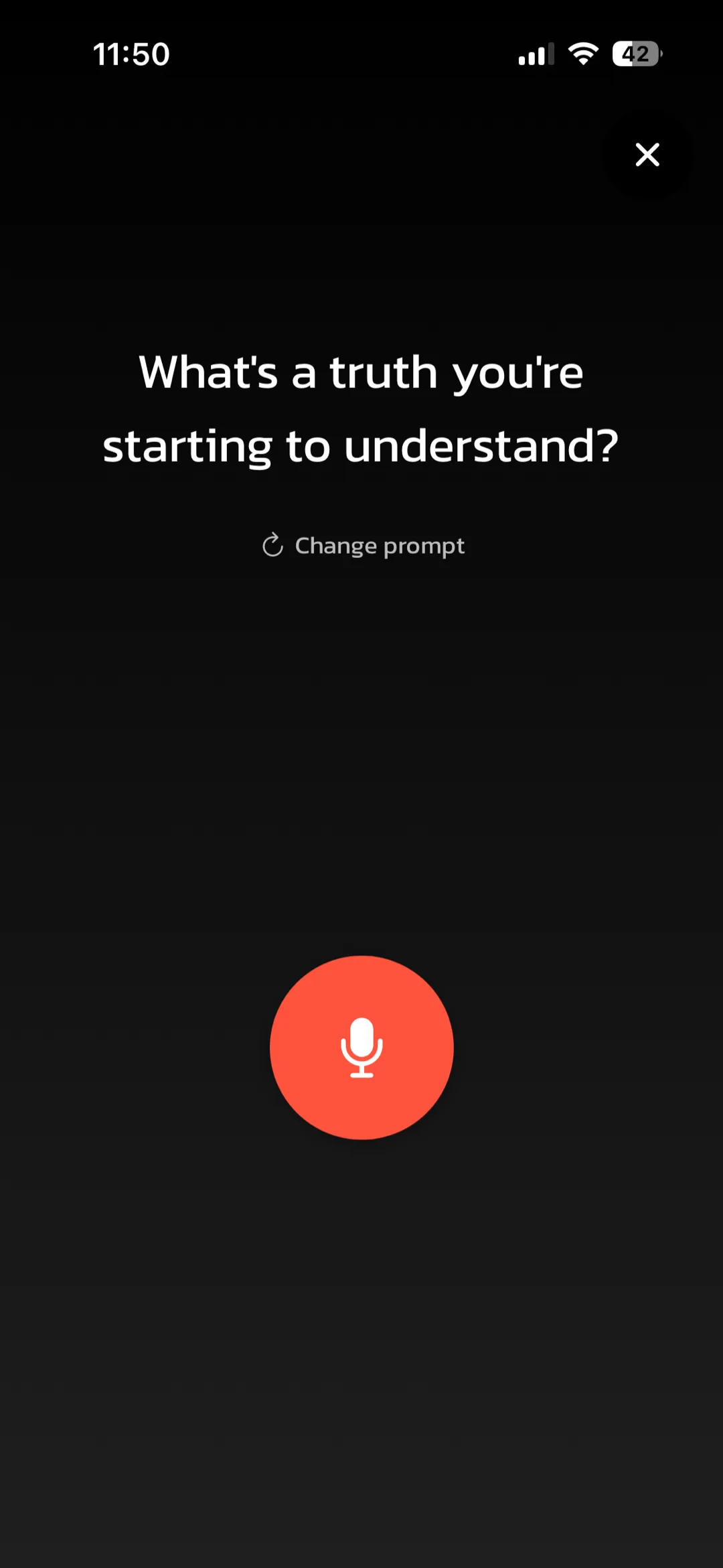

Voice Journaling with Whisper
Speak your thoughts and watch them appear as clean, readable text. The post-processing pipeline preserves your emotional tone while eliminating the structural noise of spoken language — filler words, false starts, and trailing thoughts are cleaned without sanitizing your voice.

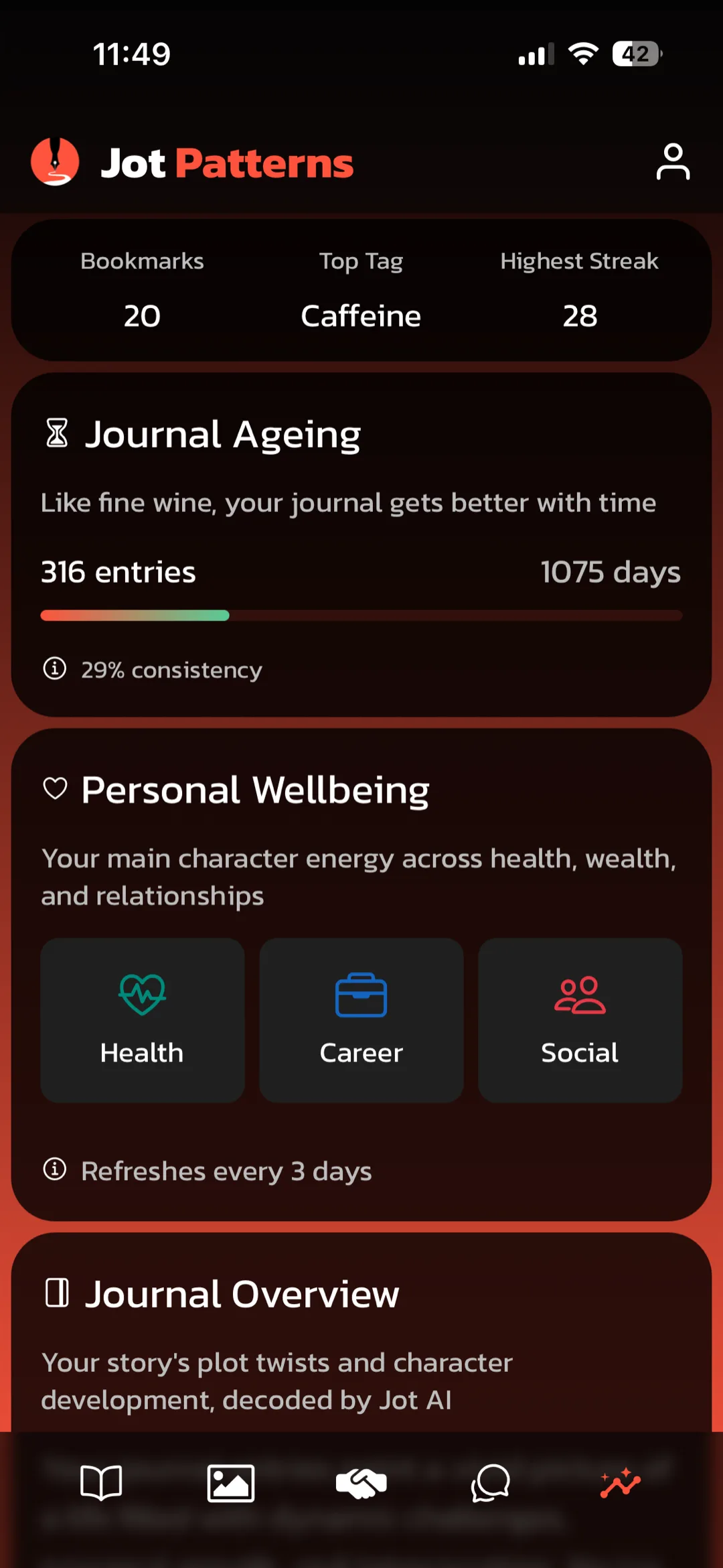

Mood Pattern Visualization
A continuous emotional topology map that tracks how your internal states evolve across weeks and months. Not a simple mood tracker with five preset faces — a genuine representation of emotional complexity that reveals patterns you would never spot in individual entries.

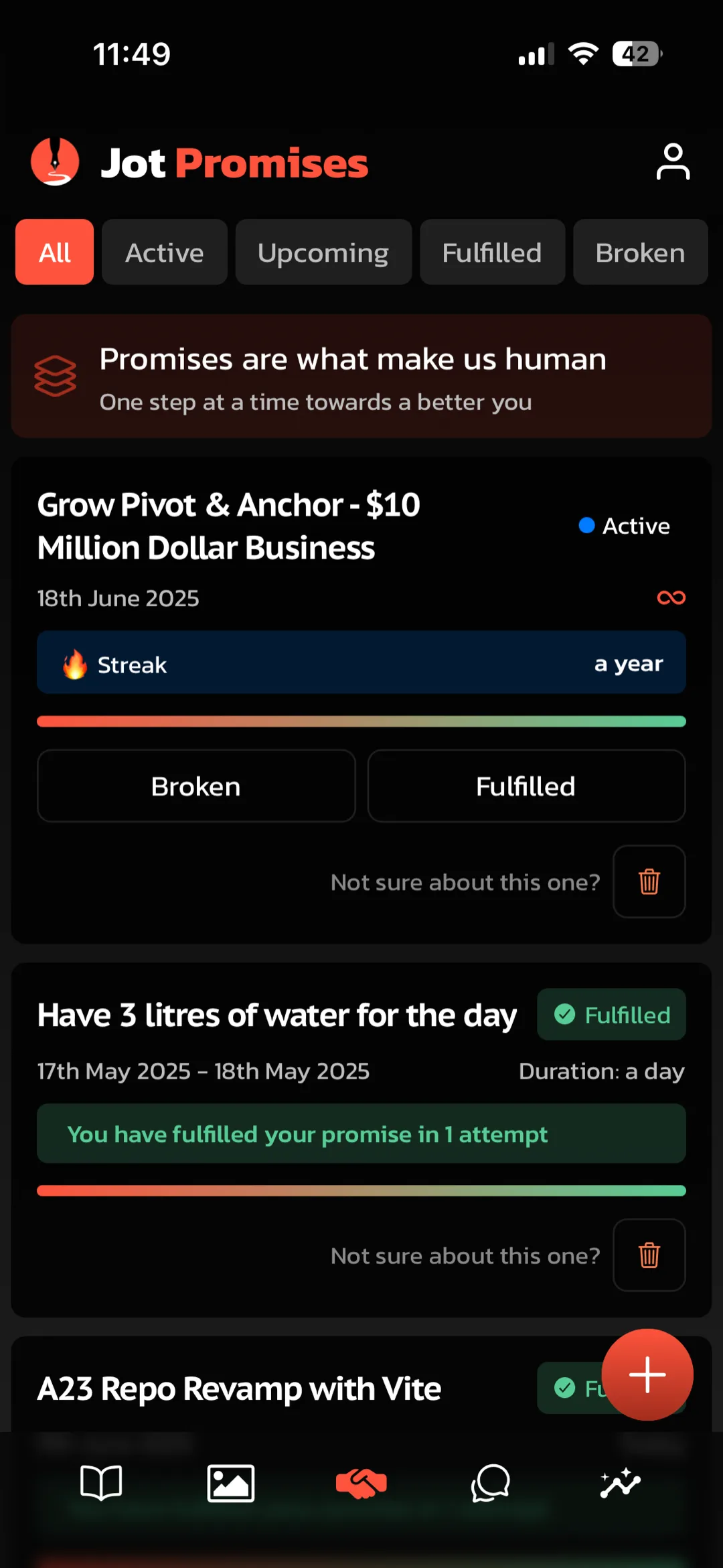

Jot Promises
Automatic extraction of personal commitments from your journal entries, surfaced as gentle accountability reminders. The system distinguishes between aspirations, firm commitments, and past reflections — it knows the difference between "I should run more" and "I am going to run tomorrow morning."
Zero-Knowledge Encryption
End-to-end encryption where your journal entries never exist as plaintext on any server. Encryption keys are derived from your credentials and never transmitted. Even a complete database breach would yield nothing but meaningless ciphertext.

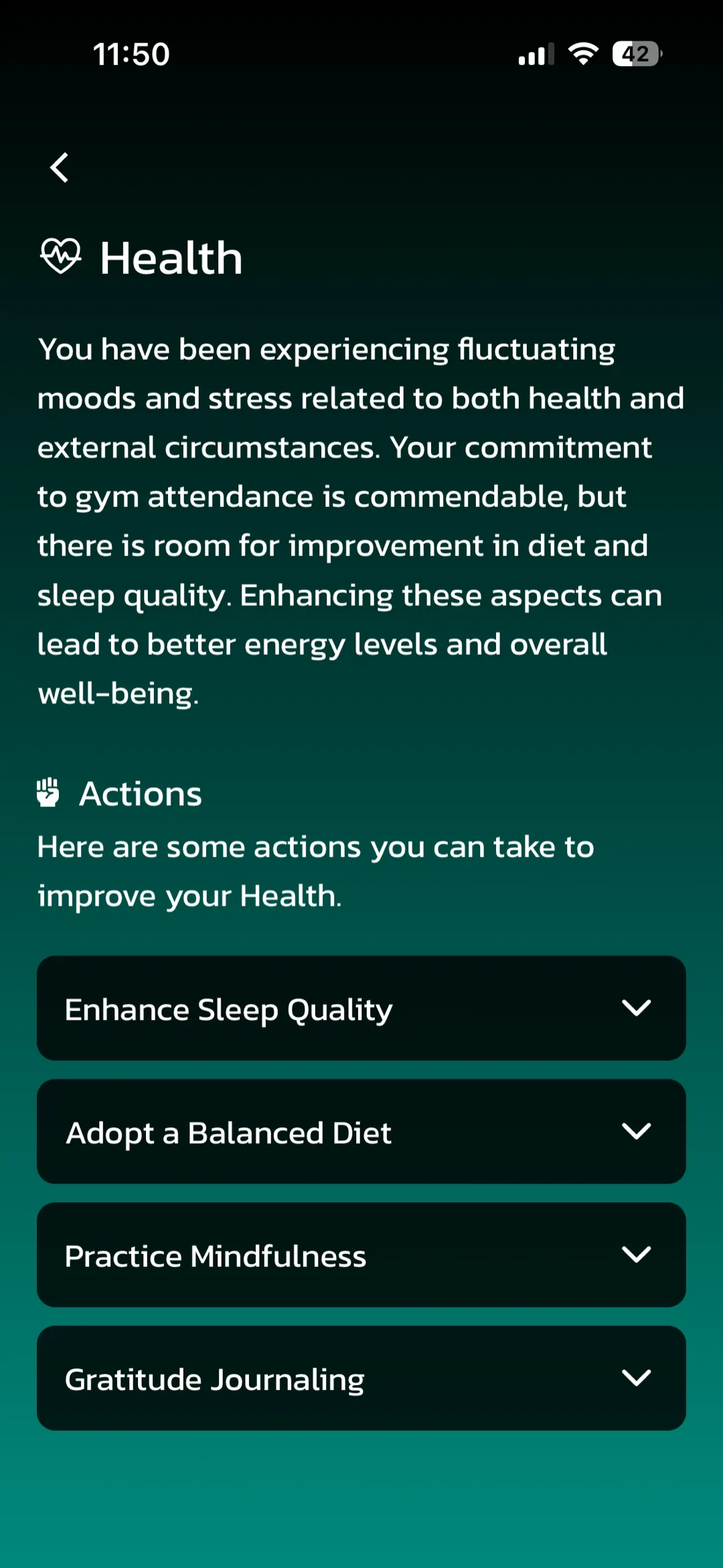

Thematic Insight Clustering
Background analysis that identifies recurring themes in your writing — relationships, career anxiety, creative ambition, health concerns — and maps how your engagement with these themes shifts over time. Themes emerge organically from your writing, not from predefined categories.
The Results
Jot Journal shipped as a polished mobile experience that fundamentally changes the relationship between a person and their journal. The RAG chat interface achieved retrieval relevance scores that exceeded our targets — users consistently rated retrieved context as "highly relevant" or "exactly what I was looking for" in 87% of test queries. The voice journaling pipeline reduced transcription-to-clean-text latency to under 3 seconds while maintaining emotional fidelity scores above 0.92 (measured by sentiment preservation between raw audio and cleaned text). The zero-knowledge encryption architecture passed a third-party security audit with zero critical findings. Most importantly, the product achieved what we set out to build: a journal that remembers. Early users reported journaling frequency increases of 3-4x compared to previous apps, driven primarily by the chat interface — the ability to have a conversation with your own history turned journaling from a write-only archive into a living, interactive practice.
